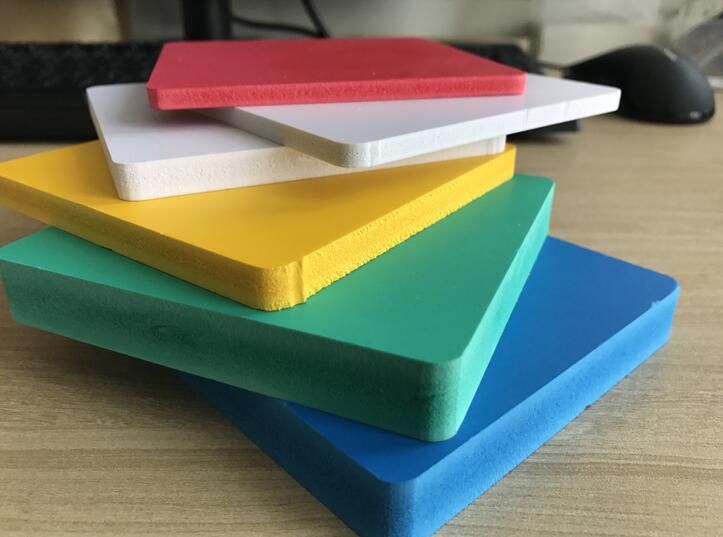

What is Foamex (Foam PVC)

Foamex, also known as Foam PVC, is a lightweight, strong, easy-to-process plastic material with excellent water resistance, corrosion resistance and good surface printing properties. It is widely used in advertising display, sign making, interior decoration, exhibition boards, model making and other fields.

Foamex digital cutting machine is an intelligent cutting device based on CNC system control. It realizes automatic cutting, proofing, hole opening and other operations of Foamex sheets through high-precision movement of the tool system on the platform. The whole process does not require molds, and the cutting task can be performed by importing drawings. It is suitable for customized production of various shapes and sizes.

The processing of traditional Foamex panels mostly relies on manual cutting or sawing tools. These methods have problems such as rough cutting edges, low efficiency, large errors, and difficulty in processing complex graphics.

The emergence of AOL digital cutting machines has brought significant advantages to Foamex processing:

Foamex digital cutting solutions explained:

1. Recommended digital cutting machine types

Recommended for cutting Foamex:

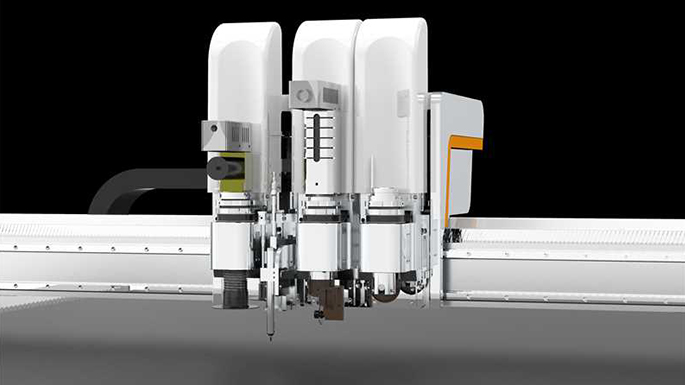

Vibrating knife cutting machine: Use high-frequency vibrating knife head to achieve clean cold cutting and avoid hot-melting edges.

Bevel knife/circular knife head: Suitable for bevel processing or continuous curve cutting of plates of specific thickness.

CCD camera positioning system: Achieve precise positioning, automatically identify the boundaries of printed graphics, and improve the efficiency of nesting.

2. Common parameter settings (taking 3mm thick Foamex as an example):

Cutter type: Vibrating knife

Cutting speed: 300~800 mm/s (depending on the hardness of the material)

Cutter pressure: 250~400g

Number of cuts: Determine whether to cut multiple times depending on the thickness

Auxiliary configuration: Vacuum adsorption platform + anti-static device + automatic feeding

3. Applicable Foamex thickness range

Digital cutting machines can usually stably process Foamex materials with a thickness of 1mm-10mm, and some industrial-grade models can support thicker materials.

Usage suggestions and precautions：

The tool selection should be appropriate according to the thickness and density of Foamex to avoid incomplete cutting or edge tearing.

Pay attention to material planning, and use layout software to improve material utilization.

Keep the tool sharp and replace the tool head regularly to maintain good cutting quality.

It is recommended to cut thick plates in multiple layers to prevent rough cuts or material stuck.

Avoid high-speed corner movements, which can easily cause corner tearing. The software should be used to optimize the path smoothing.

Main features of Foamex digital cutting machine:

Cold cutting technology: high-frequency mechanical cutters are used for physical cutting without heat source interference, effectively avoiding edge melting, yellowing or deformation of Foamex materials caused by high temperature, ensuring clean and smooth cutting edges.

High-precision cutting: The whole machine is equipped with a high-performance CNC system and precision motion mechanism, and the cutting accuracy can be controlled within ±0.1mm, ensuring that complex graphics and details are cut accurately and the quality of the finished product is stable.

High adaptability: It can flexibly cope with Foamex (foamed PVC) sheets of different thicknesses and densities, from ultra-thin 1mm to thick 10mm, and can be efficiently cut to meet the processing needs of diversified materials.

Easy and efficient operation: No additional mold production is required, only CAD, AI and other format drawings need to be imported to quickly generate cutting paths and execute tasks, saving time and effort, and greatly improving work efficiency.

One machine for multiple uses and flexible switching: compatible with proofing, small batch production and batch orders, with automatic path identification and continuous cutting functions, it is an ideal choice for flexible production in industries such as advertising, decoration, and exhibitions.

Intelligent layout system: built-in intelligent automatic nesting software maximizes material utilization, reduces scrap waste, saves raw material costs for enterprises, and improves comprehensive benefits.

Foamex / Foam PVC digital cutting machine is an advanced processing equipment that integrates high efficiency, high precision, intelligence and strong flexibility. It is the best choice for processing Foamex sheets in industries such as advertising, exhibitions, and decoration. Whether enterprises are improving the level of production automation or expanding diversified customized services, digital cutting machines will become the core productivity tool.

If you want to know more about performance issues, please leave a message , we will have a professional staff contact you.
