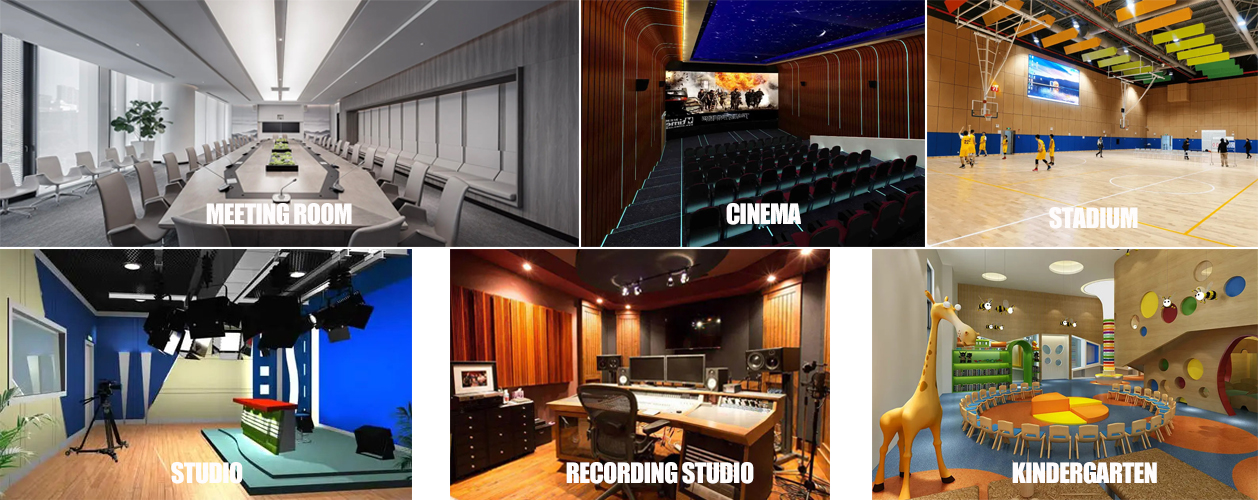

Sound-absorbing materials are mostly loose and porous materials, such as slag cotton, blankets, etc. The sound-absorbing mechanism is that sound waves penetrate into the pores of materials, and the pores are mostly internal openings through each other, subject to air molecular friction and viscous resistance, and make tiny fibers for mechanical vibration, so that the sound energy is converted into heat energy. The sound absorption coefficient of this kind of porous sound absorbing material generally increases gradually from low frequency to high frequency, so the sound absorption effect of high frequency and middle frequency is better. , sound absorption board has sound absorption, environmental protection, flame retardant, heat insulation, heat preservation, moisture-proof, mildew resistance characteristics, and dust removal, cutting convenient, can be spread-out construction is simple, strong stability, good impact resistance, cost-effective. It is used in grand theater, concert hall, movie theater, recording studio, studio, conference room, KTV room, home movie room factory, mute room, lecture hall, interrogation room and other acoustic places.
Sound-absorbing panel is a common decoration material. It is often cut and carved into any shape for beauty, and then spliced into a sound-absorbing and beautiful wall or ceiling. The primary processing method of sound-absorbing panel decoration is punching, slotting, cutting, etc. The manual cutting will cause uneven cutting, burrs, and low efficiency.
Due to the wide application of polyester fiber sound-absorbing panels, the traditional cutting method can no longer meet the accuracy, so the polyester fiber sound-absorbing panel cutting machine can achieve easy cutting, and the sound-absorbing panel vibrating knife cutting machine still chooses blade cutting in the cutting method. Compared with manual cutting, the vibrating knife cutting machine can perform three processes of grooving, punching and cutting at the same time. The high-frequency vibration cutting arc edge is neat and burr-free, and the cutting speed is fast. , The super nesting software has been tested by many manufacturers, which can save more than 10% of materials. The automatic error compensation system allows the cutting error of the vibrating knife to be controlled within ±0.01mm.
Product details of polyester fiber sound-absorbing panel cutting machine:
Control system: high-speed motion control system is adopted, system upgrade and maintenance are not controlled by a third party, later maintenance is convenient, high reliability, low cost, because the control right is in hand, special programs can be easily customized for the individual needs of users And perform remote upgrade.
Machine head design: The design concept of replaceable machine head is adopted, and the tool head is not fixedly welded and integrated. It can be easily replaced and added with different functions of the tool head according to the actual work needs and the expansion of the business scope.
Working mode: The servo motor is used to drive the screw control mode, and it can be linked with the computer to preset and store the knife depth and knife pressure according to different needs. The digital fine-tuning also solves the problem that the pneumatic pressure cannot be constant with the temperature and time fluctuations.
Graphic positioning: configure drawing and cursor manual positioning function, optional camera automatic positioning function, quickly, conveniently and accurately cut all kinds of complex special-shaped graphics.
Anti-interference: Considering the actual use of complex electromagnetic environment by customers, the anti-interference operation screen is specially equipped, which is not affected by the surrounding electronic environment during work, and will not be blurred.
Stabilization device: special stabilization device is installed to effectively reduce the vibration amplitude of the equipment and maintain the long-term stability and accuracy of the machine performance.
Data interface: The data interface is a network interface, which can realize remote upgrade and maintenance, fast transmission speed and long distance, can be transferred with multiple computers at the same time, can be controlled and upgraded from a long distance, etc. Compared with the old serial port, parallel port and PCI interface, it is more advanced ,more convenient.
Tool configuration: equipped with vibrating knife, drag knife, stroke tool and optional half knife, milling knife, slotting knife, flying knife, hob, indentation knife and other tools, which can realize writing and drawing lines, dashed line cutting, Half-cut cutting, full-cut cutting, milling cutter cutting, V-CUT grooving of various materials, milling grooves, large and small pressure roller indentation, hard material scratches and other practical functions.
If there is anything else you want to know, please contact us in time, we will answer you as soon as possible, if you are interested in our machine, click on the registration information, we will send you the detailed content of the machine!
